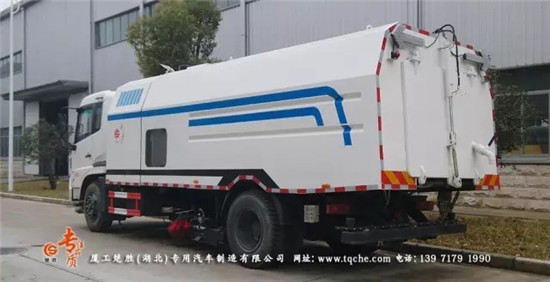

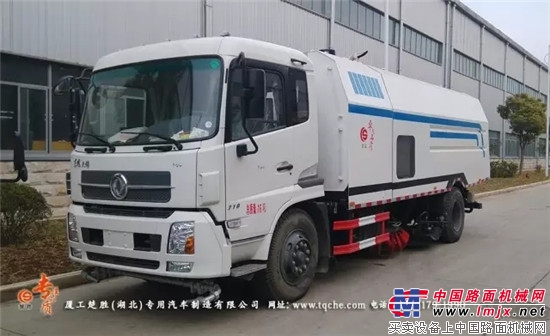

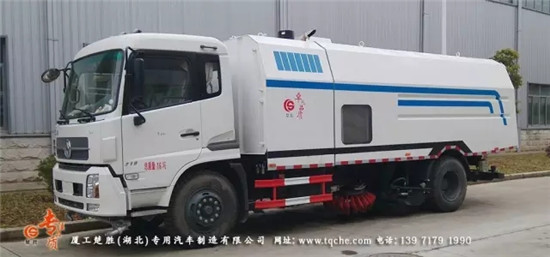

Dongfeng Tianjin Scooter Configuration:
Cummins ISB180 40 Engine; common rail + SCR technology. 5.9L displacement. Flat top semi-cab; wheelbase: 4500MM; front and rear axle: 4.5/9T (east wind); DF6S900 gearbox; clutch: Φ395; frame section: 250 × 80 × [7 + 4] MM; 9.020 tires; Fuel tank; overspeed; air-conditioned. With ABS, driving recorder; under protection. Number of leaf springs: 8/10+8. Kang machine 140 horsepower auxiliary engine, 4 water / 7 dust, 1. center 4 sweeping disk, new strong motor, Schneider control switch, Hai Risen solenoid valve group, Xiamen Nanchao automatic clutch, maintenance-free centrifugal fan, stainless steel garbage Box, Wenzhou Xinxishan electronic water pump, garbage bin lifting and self-unloading, tail LED arrow light, manual pump emergency system
2. Sweep width 2.6M-3.2M, suction particle size Φ120mm
3. Optional configuration: sprinkle before flushing, self-cleaning of garbage bin, monitoring of reversing image operation.
ã€The main technical parameters】
Product trademark Chusheng
Announcement Lot 279
Product Name CSC5160TSLD type road sweeper
Product No.ZL7XV50A042
Total mass (Kg) 16000
Tank volume (m3)
Rated load mass (Kg) 5555
Dimensions (mm) 8100×2480×3200
Curing quality (Kg) 10250
Cargo size (mm) × ×
Rated passenger (person)
Quasi-trailer total mass (Kg)
Number of passengers in the cab (person) 3
Load mass utilization factor
Approach angle / departure angle (°) 20/15
Front overhang / rear overhang (mm) 1430/2170
Number of axes 2
Wheelbase (mm) 4500, 4200
Axle load (Kg) 6000/10000
Maximum speed (Km/h) 80,90
The other side protection is replaced by a special device; the rear guard is cold-formed steel/Q235, connection method: welding, height from the ground: 530mm. With the optional chassis cab. Wheelbase/hangover correspondence (mm): 4500/2170. ABS manufacturer and model: East Cochnoll Commercial Vehicle Brake System (Shiyan) Co., Ltd. /3631010-C2000. (This article comes from Xiagong Chusheng)
